W N 6

Software for P3G Polygon Profile Joints

(C) Copyright 2002-2024 by HEXAGON Software, Berlin


Calculation

WN6 calculates dimensions, tolerances, stress and safety factors for P3G Polygon Profiles according to DIN 32711.

Additional or as alternative we offer WN13 for polygon profiles P2G, P3G, P4G (PnG).


Pre-Dimensioning

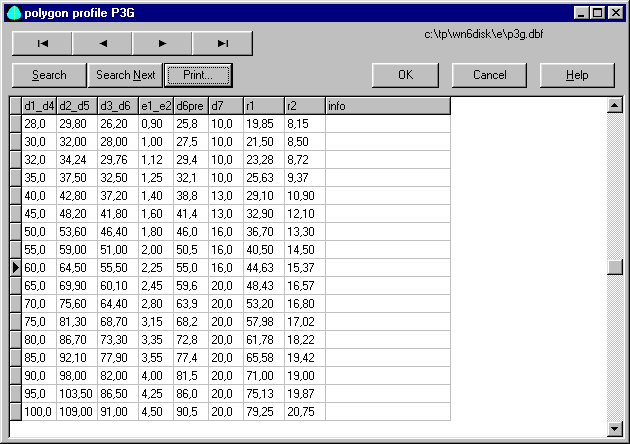

Enter torque, select material and application: WN6 calculates minimum size required for a P3G shaft-hub joint.

Stress Calculation

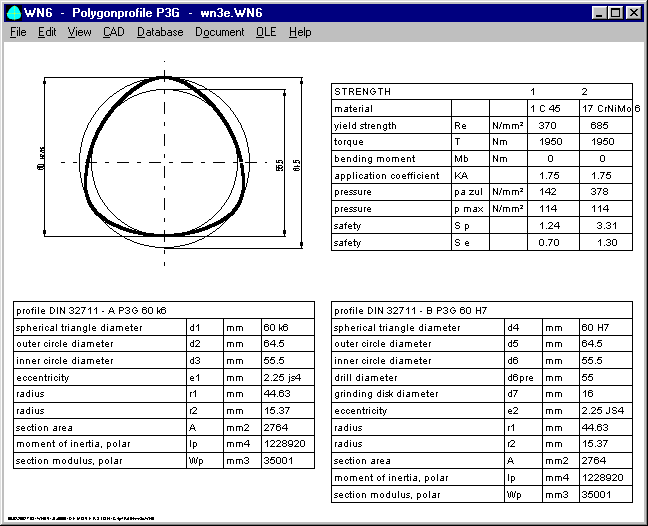

WN6 calculates compressive stress, torsional stress, bending stress, and equivalent stress according to DIN 32711 and DIN 6892. Material, application factors and life expectation coefficients are considered by WN6.

Production Drawing

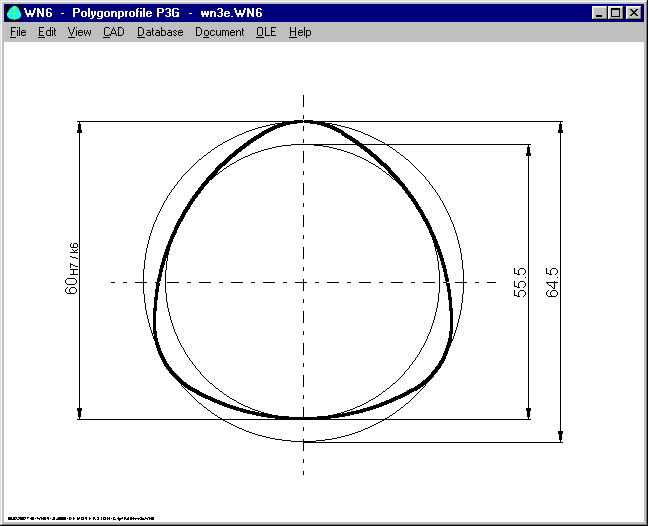

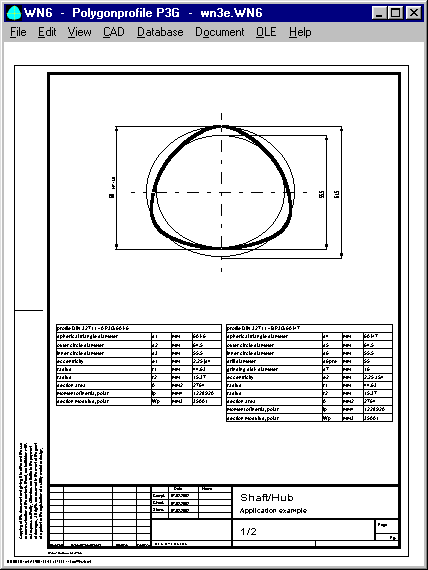

Drawing tables with P3G profile drawing according to DIN 32711 may be printed directly, or exported to CAD via DXF-/IGES interface.

Hard- and Software requirements

WN6 is available as 32-bit or 64-bit application for Windows 11, Windows 10, Windows 7.

Scope of Delivery

WN6 program, user manual (pdf), license for unlimited time use.

Guarantee

HEXAGON gives a 24 month guarantee on full functionality of the software.

Information and Update Service

HEXAGON Software is continuously improved and updated. Customers are regularly informed about updates and new editions.
