HPGL-Manager

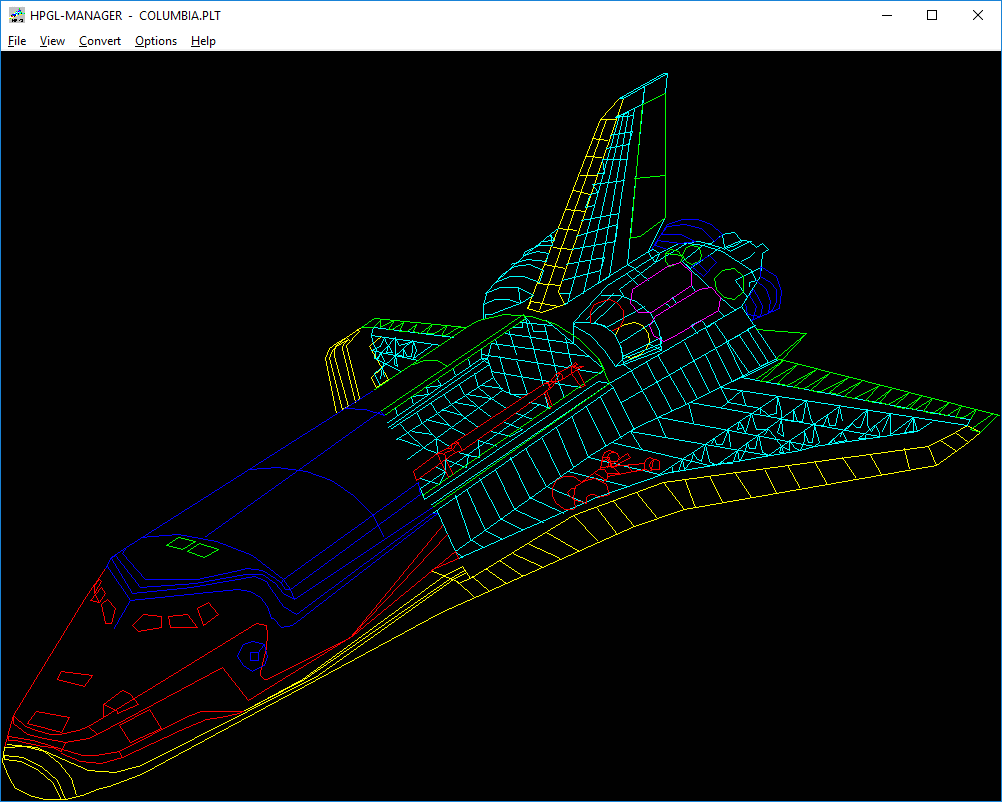

The HPGL Manager enables presentation of unlimited sized plot files on screen in the HP-GL (Hewlett Packard Graphics Language) and HP-GL/2 formats, and conversion of the files to other graphic file formats.

Conversion

Available output formats are:

CAD: DXF, IGES
Plotter: HP-GL, HP-GL/2, Aristo, Lasercomb
NC-Code: DIN 66025, Deckel, SM.
Laser printer: Postscript, HP/GL
Programming: Turbo Pascal, Turbo C.

Postscript Laser Printer

Text font and width can be defined, as required, when outputting drawings to a postscript laser printer. Colors can be assigned different stroke thicknesses.

Plotting

The true-scale drawing can be enlarged or reduced and printed out, with origin shift, on plotter or laser printer.

NC Code

The NC Conversion feature can for be used for example for engraving cutting or prototype boards with a CNC machine.

Command Line Mode

In command line mode, HPGLMAN can be used as batch oriented conversion tool. Example: "WHPGLMAN *.PLT /CPS /D3" converts all HPGL files to Postscript files. "WHPGLMAN *.PLT /G" will print all HPGL drawings by the default printer.

System Requirements

The HPGL Manager is a 32-bit application for Windows 95, 98, NT, 2000, XP, Vista, 7.

Scope of Delivery

CD-ROM, User Manual with description of graphic formats used, license agreement for indefinite period of time, with update service.

Guarantee

HEXAGON guarantees, for a period of 12 months, that the software will fulfil the functions described.

Software Maintenance, Hotline

We constantly endeavor to extend and improve HEXAGON Software. We keep our customers informed about updates and new features at regular intervals.

Download HPGLMAN Demo for Windows

You can convert the attached HPGL files to DXF, IGES, Postscript, NC-Code, HP-GL and HP-GL/2. If you want to test your own HPGL files, please download our HPGLVIEW software.
