DXF-Manager
Software for Display and Conversion of DXF Files
(C) Copyright 1989-2011 by HEXAGON Software, Berlin
DXF-Manager

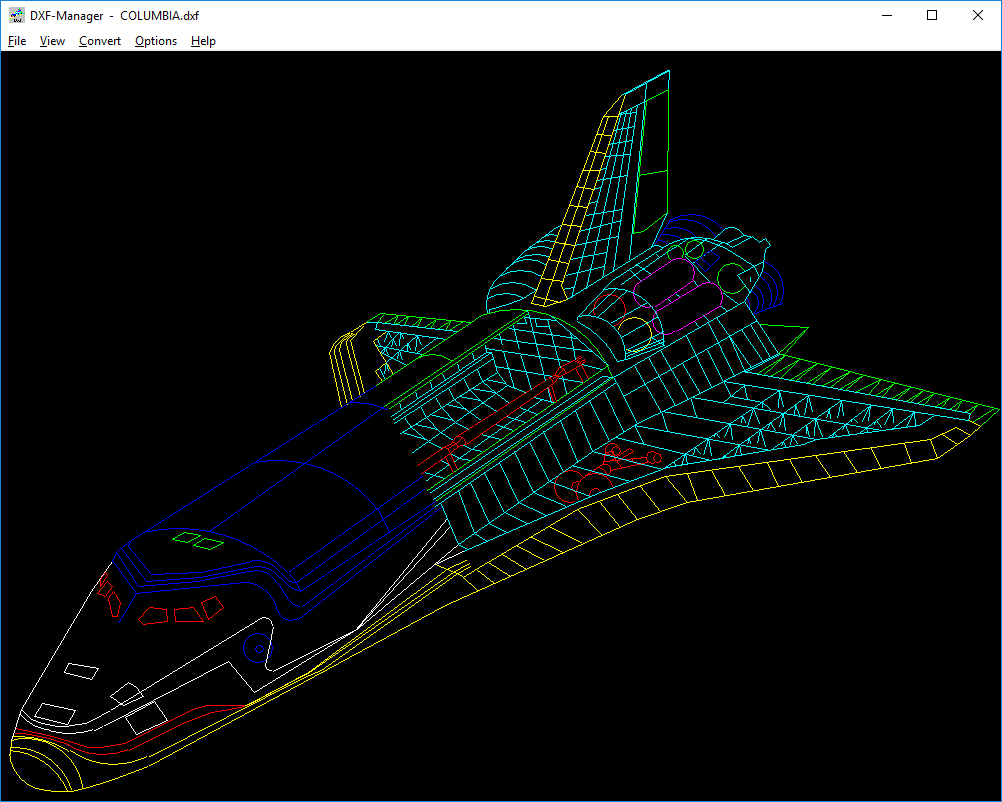

The DXF Manager displays files from AutoCAD or other CAD systems on screen, and converts them to other graphic formats.

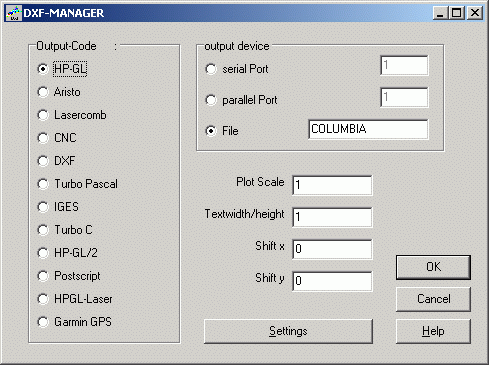

Conversion
Available output formats are:
- CAD: DXF, IGES
- Plotter: HP-GL, HP-GL/2, Aristo, Lasercomb
- NC-Code: DIN 66025, Deckel, SM.
- Laser printer: Postscript, HP/GL
- Programming: Turbo Pascal, Turbo C.
- GPS: Garmin.
Plotting
The scale drawing can be enlarged or reduced and printed out, with origin shift, on plotter or laser printer.
NC Programming
DXF drawings can be transfered directly to NC programs.
DXF Filter
When exchanging DXF files, incompatibilities can be corrected by conversion with the DXF Manager.
Postscript Laser Printer
Text font and width can be defined, as required, when outputting drawings to a postscript laser printer. Colors can be assigned different stroke thicknesses.
Command Line Mode
In command line mode DXFMAN can be used as batch oriented conversion tool.
Example: "DXFMAN *.DXF /CIGS /D3" converts all DXF files to IGES files.
Hard and Software Requirements
The DXF Manager is a 32-bit application for Windows 95, 98, NT, 2000, XP, Vista, 7.
Scope of Delivery
CD-ROM with program, User Manual with description of graphic formats used, license agreement for indefinite period of time, with update service.
Guarantee
HEXAGON guarantees, for a period of 12 months, that the software will fulfil the functions described.
Software Maintenance, Hotline
We constantly endeavor to extend and improve HEXAGON Software. We keep our customers informed about updates and new features at regular intervals.
© HP-GL and HP-GL/2 are registered Trademarks of the Hewlett-Packard Inc.
